Benchmark Test Report on VeritakSV3.83A-alpha and MXE6.5C

UpDated Oct.22.2010
Tak.Sugawara
1. Purpose

To report performance comparison between new version of VeritakSV and MXE6.5C.

2. Test Condition

Item	Description	Remarks
Machine	Q9550(2.87GHz)　DDR2 8GB memory Core i7 920 DDR3 6GB memory
OS	Vista Ultimate 32bit (Q9550) Windows7 64bit (Core i7)
Test Bench	Verilator's　Site　Bench/　FZ80/　Etc.
Simulator	VeritakSV3.83A(0.39α) /Veritak3.75(Basic/Pro) MXE6.5C(Not Starter. Full Xilinx Edition of Modelsim)
Measured Time	From Simulation Starts to Simulation ends. Not include compile time.	Veritak:Optimized Debug:Normal/ Level/2/NBA/Fast Switch

3 Test Result
Measure time between start and finish of the simulation.

Machine Q9550 Vista Ultimate 32bit-8GB DDR2

Category	Bench Test Name	Veritak-Pro(sec)	VeritakSV(sec)		MXE (sec)		MXE/VeritakSV		Veritak SV Remarks	source/project
Category	Bench Test Name	Veritak-Pro(sec)	w/o waveform	w/ waveform	w/o waveform	w/ waveform	w/o waveform	w/ waveform		Project File	State Save File	source
Gate	C6288(ISCAS'85)	14	0.38	0.83	57.44	151.96	151x	84x	CycleBased	c6288_load.vtakprj	c6288_383.vtaksave	bench_mark.zip
Altera	Altera PLL	15	2.69	3.25	9.36	20.53	3.59x	6.3X
	ddr	34	10.0	11.8
	ddr3	78	28	37						ddr3_load.vtakprj	ddr3_383.vtaksave
	ddr2-avalon	20	6.18	7.0						ddr2_avalon_load.vtakprj	ddr2_avalon_383.vtaksave
	rapid-io	121	27.6	35.16						rapid_io_load.vtakprj	rapid_io_383.vtaksave
	pci-express	-	19	25.5						pci_express_load.vtakprj	pci_express_383.vtaksave
Xilinx	DCM	69	12.8	17	21.12	39.34	1.65x	2.31x
	RAM36	17	7	7.2	142	149.1	20.29x	20.71x
	pci-xilinx	15	4.92	7.1
	ddr2 -m	2	0.86	0.96
	ddr2-mig33									ddr2_load.vtakprj	ddr2_save_383.vtaksave
	ddr3-11.1	204	91	101						ddr3_load.vtakprj	ddr3_383.vtaksave

Small Design	WB_Z80(opencores)	28	6.1	6.57	69.56	83.87	12.4x	12.8x
	DIV(opencores)	136	63	70	556	682	8.83x	9.74x
	USB1.1(opencores)	21	8.7	9.43	1013	120	11.61x	12.72x
	m68k(opencores)	137	32	119	562	1147	17.56x	9.64x
	ata(opnecores)	107	36.6	107	732	1161	20.0x	10.85x
	tv80(opencores)	10	5.3	6.0	31.12	75.69	5.87x	12.62x
	fz80	15	5.43	6.43	42.6	71.17	8.82x	11.07x	CycleBased
	AES(sugawara-systems.com)	7	2	2.84	18.22	67.61	9.12x	23.78x	CycleBased
	VGA(user contributed)	17	9	19	140	292	15.56x	15.37x
	conmux(opencores)	14	4.75	5.15	82.75	148	17.43x	28.74x
	AC97(opencores)	392	202.9	230	1868	2030	9.21x	8.83x
	H8(sugawara-systems.com)	5	2.05	2.4
	YACC-w/o cache(opencores)		65	81
	YACC-w/ cache(sugawara-systems.com)	215	135	165
	openrisc(opencores)	5	1.48	1.84	14.58	17.26	9.82x	17.26x
	A0(sugawara-systems.com)	4	2.71	2.96	11.08	16.44	4.09x	5.55x
	LatticeMico32	387	126	146	765	2018	6.07x	13.82x
	fpu(opencores)	1636	432	750	3844	12950	8.90x	17.5x

Large Design	PCI(opencores)		305	557	2482	5533	8.06x	9.93x
	Ethernet(opencores)		322	476	Iterationlimit		-
Basic Component	base_test_bench_delay	9	6.04		25.11		4.15x					bench_mark.zip
	base_test_bench_nba_delay	10	7.27		54.78		7.54x
	base_test_bench_prop	8	0.53		2.92		5.51x
	base_test_bench_prop_delay	50	8.35		76		9.11x
	base_test_bench_prop_nba	53	10.61		107		10.08x		CycleBased	base_test_bench_prop_nba_load.vtakprj	base_test_bench_prop_nba_383.vtaksave
	base_test_bench	3	0.43		1.36		3.16x			base_test_bench_load.vtakpr	base_test_bench_383.vtaksave
	base_test_bench_inv	3	0.44		1.32		3.0x

4. Consideration
4.0 Performance

Performance gain is at least 3x out of 95% benches, On average,10x performance is expected with compared to MXE., is said to 40%of PE.. (SE is 1-3x of PE).

4.1 Waveform Addition
In general, high performance simulator degrades by adding to waveforms.,particularly in entire design. This is due to relatively heavier waveform operations than simulation engine itself.VeritakSV has a solution for the problem. Waveform operations are assigned by separated cpu power,so that performance degradation is minimized on Dual CPU platforms..
.
4.2 32bit limitation
In 32bit OS environment, address space is restricted in 2GB ( 2GB is for application other 2GB is for OS.) , disk operations can not be avoided when simulating long term or large design,even if you have more than 4GB RAM. Disk operation is bottleneck,. in fact some benches above show this kind degradation.

Category	Bench Test Name	VeritakSV(sec) ８GB-32bitVista		VeritakSV64(sec) 6GB-64bitWindows7		MXE (sec) 8GB-32bitVista		MXE/VeritakSV64
Category	Bench Test Name	w/o waveform	w/waveform	w/o waveform	w/ waveform	w/o waveform	w/ waveform	w/o waveform	w/ waveform
Small	ATA	36.6	107	32	40.7	731	1161	24x	29x
Small	VGA	9	19	8.2	11.6	140	292	17x	24X
Small	M68K	32	119	30	40.1	562	1147	19x	29x

4.3 64bit simulator on 64 bit OS

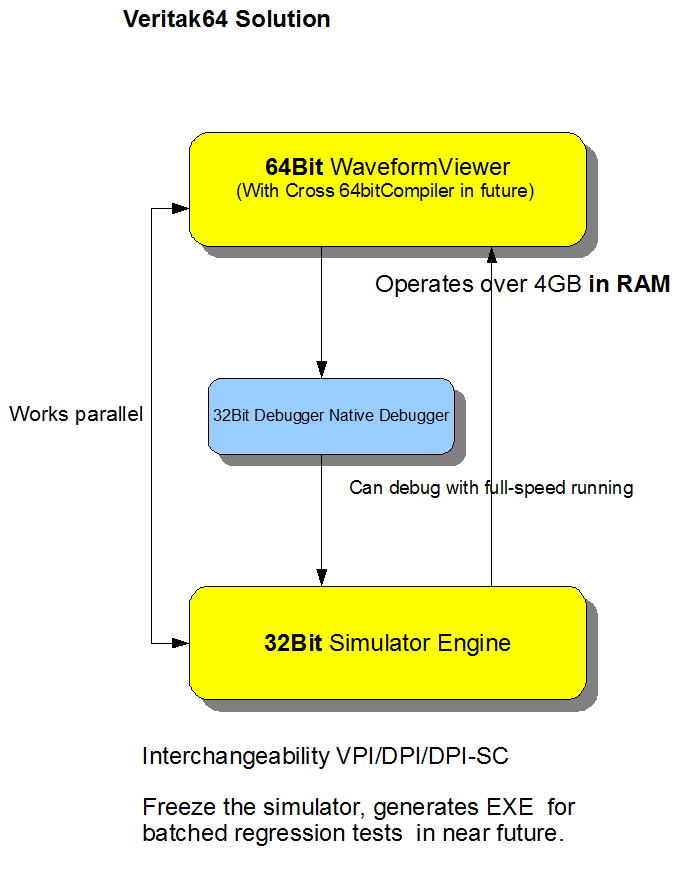

To overcome 4GB barrier 64bit OS is must. Using 64 bit OS and multi-threaded simulator with a lot of (inexpensive) DDRs, drastic performance gain can be expected. One problem is interchangeability for VPI/DPI/DPI-SC..on 32bit when 64bit simulator is used.. VeritakSV's engine runs 32bit on WOW64, while running waveform operations native 64bit. There is no need to worry about interchangeability.

4.4　Native　Debugger
Since VeritakSV has NativeDebugger, debug-mode is non existent.. In full-speed running, you can place breakpoint on structural net assignments as well as procedural assignments ,with tool-tip in single step run.

4.5 Future enhancement
Cross compilation(64bit->32bit) will be considered to implement in future..

4.6 Download Simulator

　We attach restricted version of the simulator. This simulator does not compile any source, but can simulate the benches above by following procedure. Please note the simulator installation is possible on 64bit OS only. We will be glad to upload the objects that you would like to simulate if you supply sources.

Procedure:

Download and install the simulator
Download the Veritak Project file you like to perform benchmark
Download StateSave file (*.vtaksave) and place the file to the same folder as 2.
Load the project & Run.

VeritakWinSV64_383B Build Oct.22.20110

5.Conclusion
